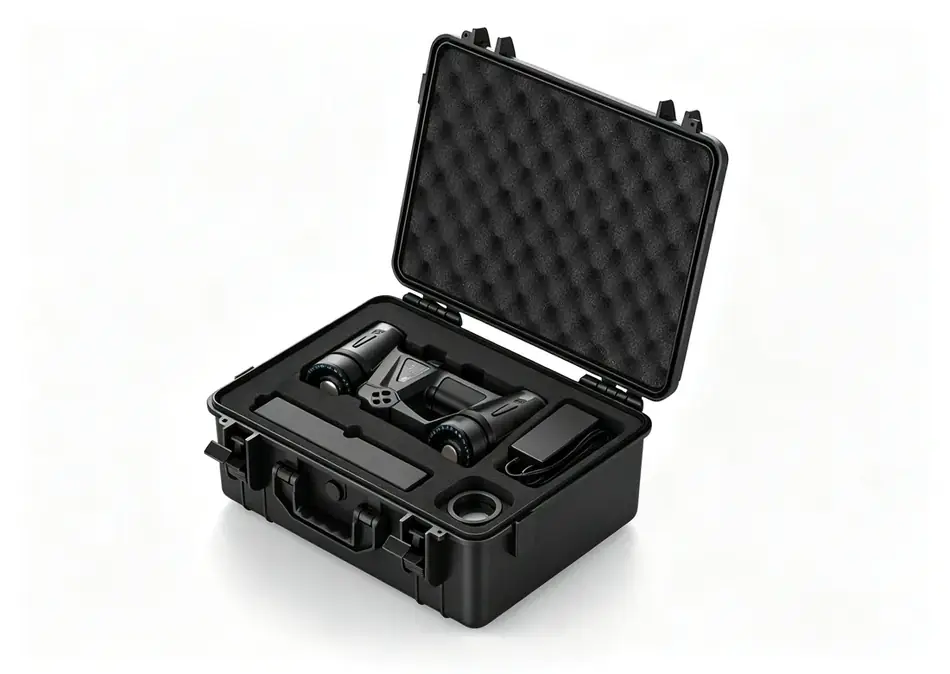

Optical Equipment Cases
Cases for optics, observation and measurement heads. Suspended lens zones, firm carriers, sealed options and custom CNC foam from a manufacturer.
An optical equipment case protects an assembly where the sensitive part is glass and a calibrated mechanical interface. The interior suspends the body, keeps every coated surface unloaded, and prevents the foam itself from shedding particles onto optics.
Key points
- Closed-cell PE is used rather than open-cell foam, which sheds particles.
- Objective and eyepiece ends are left clear of contact under load.
- A sealed configuration is specified for marine and desert use.
- Forty-five models exceed 30 L for optics with mounts and tripods.
Why foam choice is an optical problem
A coated surface scratched by a foam fibre is ruined even though the case survived. That rules out open-cell and crumbly foams. It also means the cut has to be precise enough that the optic does not rock in its pocket, because repeated micro-motion against a hard edge polishes and then marks the coating.
In this family
Sorted by internal volume. Each card leads with the measured internal envelope, because that is the number you size on.
T Series Protective Case
External 843 × 592 × 415 mm
T Series Protective Case
External 843 × 592 × 335 mm
T Series Protective Case
External 830 × 445 × 374 mm
T Series Protective Case
External 733 × 505 × 357 mm
T Series Protective Case
External 677 × 535 × 364 mm
8 Series Protective Case
External 843 × 592 × 212 mm
T Series Protective Case
External 677 × 535 × 304 mm
8 Series Protective Case
External 1356 × 154 × 408 mm
T Series Protective Case
External 610 × 610 × 270 mm
T Series Protective Case
External 588 × 475 × 353 mm
8 Series Protective Case
External 733 × 505 × 230 mm
T Series Protective Case
External 612 × 427 × 355 mm
See all 45 Optical Equipment Cases models in the filterable database →
In this family: 3 sub-classifications
The family is not a flat list. Buyers come to us with a sub-type in mind, so each one below is a real filter over the same product database rather than a separate marketing page.
How to specify this family
Bare optic
Suspended body, both ends clear, soft contact layer.
Mounted system
Carrier under the mount, optic unloaded, tripod in a separate channel.
Night operations
Silent foam surface and a layout that can be opened without looking.
Questions on Optical Equipment Cases
How should optical equipment be protected during transport?
Support the body along its barrel, keep the objective and eyepiece clear of contact under load, prevent micro-motion inside the pocket, and use a foam that does not shed particles onto coatings.
What foam suits optics?
Soft closed-cell PE against the surface, over a firmer carrier that takes the mass.
How do I measure an optic before ordering a case?
Measure the longest dimension including lens caps and any attached mount, then the widest diameter, then add 20 mm per axis.
