725 × 350 × 140 mm
800 × 408 × 153 mm
28.4 L
Internal dimensions decide whether your equipment fits — size on these plus at least 20 mm of clearance per axis. Usable interior volume is lower than the theoretical L×W×H figure because of the corner radii, the seal channel and the hardware. External dimensions decide whether the case fits a pallet, a rack or a vehicle.
KX-88015 8 Series Protective Case
A PP injection-moulded 8 series protective case with an internal envelope of 725 × 350 × 140 mm, an empty mass of On request and a 5 mm wall. Supplied with a foam interior cut to your equipment.
Key features
- Internal envelope 725 × 350 × 140 mm — 35.5 L theoretical, 28.4 L usable
- External 800 × 408 × 153 mm, so the pallet and rack fit can be checked before ordering
- PP shell, moulded at 5 mm wall
- Empty mass On request
- Fixed folding handle; stackable rim
- Sealing gasket can be fitted at this wall thickness
- Interior cut to your equipment: pick-and-pluck, die-cut or CNC
- Padlock-ready latches; replaceable hardware held as serviceable spares
Dimensions & technical specification
Measured on production units. Where a figure is not published it has not been measured — ask and we will confirm it for your batch.
Every value below is tagged Measured, Option or Not measured. No IP rating, drop height or stack load is implied. A certified figure is quoted as a separate accredited test against this exact configuration.
| Model | 8015.0 |
|---|---|
| Series | 8 Series — Heavy-duty large case |
| Status | Active production |
| Brand | KEXIN |
| External dimensions | 800 × 408 × 153 mm |
| Internal dimensions | 725 × 350 × 140 mm |
| Lid / base depth | 100 + 40 mm |
| Wall thickness | 5 mm |
| Internal volume (theoretical) | 35.5 litres |
| Usable interior volume | 28.4 litres (after radius, seal channel and hardware) |
| Net weight | On request |
| Gross weight | On request — measured per export configuration |
| Shell material | PP |
| Load capacity | Not stated without a test record |
| Wheels | None |
| Handle | Fixed folding carry handle |
| Locking | Latch body accepts a standard padlock |
| Stackable | Yes |
| Custom foam | Pick-and-pluck, die-cut or CNC-cut |
| OEM / ODM | Available — logo, colour, hardware, interior, packaging |
| MOQ — stock shell | 1 unit |
| MOQ — custom colour or logo | 300 units |
| MOQ — new mould | 3,000 units per moulded component |
| Lead time | 45 days OEM existing mould · 125 days new mould |
| Delivery terms | EXW or FOB Zhongshan / Shenzhen |
Protection features and what we can claim
Tagged by evidence level so a procurement review can tell a construction option from a test result.
Protection features
| Waterproof | — Not measured |
|---|---|
| Dust resistance | — Not measured |
| Shock protection | Yes Option |
| Impact resistance | Yes Option |
| UV resistance | — Not measured |
| Temperature range | — Not measured |
| Corrosion resistance | Yes Measured |
| Stack load | — Not measured |
| Load capacity | — Not measured |
| Seal type | Compressible gasket in continuous moulded channel Measured |
| Protection rating (IP) | — Not measured |
Interior options & foam
| Foam types | Pick & Pluck · Die-Cut · CNC-Cut · EVA · PE · EPE |
|---|---|
| Foam structure | Top foam · Base foam · Egg-crate / convoluted · Custom cut · Layered |
| Custom foam | Yes |
| Custom thickness | Yes |
| Custom shape | Yes |
| CNC cut | Yes |
| Die cut | Yes |
| What we need from you | Drawing, photograph of the packed kit, or a physical sample |
Hardware
| Handle | Fixed folding |
|---|---|
| Wheels | None |
| Lock | Padlock-ready latch |
| Latch | Count specified per configuration |
| Hinge | Replaceable pin |
| Pressure valve | Available as an option |
| Shoulder strap | Available on request |
| Feet / stacking rim | Moulded |
| Document holder | Optional |
Customisation, packaging and downloads
Customization on this shell
| OEM available | Yes |
|---|---|
| ODM available | Yes |
| Custom logo | Yes — from 300 units |
| Custom colour | Yes — from 300 units |
| Custom packaging | Yes |
| Custom hardware | Yes |
| Custom mould | Available — 125 days, MOQ from 3,000 per component |
| Private label | Yes |
Packaging & freight
| Packaging type | On request |
|---|---|
| Carton dimensions | Not published for this model |
| Pieces per carton | Not published |
| Pallet quantity | Calculated against your pallet size on quotation |
| Container loading | 20GP / 40GP / 40HQ figures supplied with the quotation |
| Delivery terms | EXW or FOB Zhongshan / Shenzhen |
Downloads
A per-model datasheet, the full catalogue and a dimension sheet are generated from this same record, so a specification sheet can never disagree with the website.
Where this model is used
Related knowledge and projects
Container Loading For Protective Cases
Engineering Plastics In Protective Cases
Firearm & Long Equipment Transport Case Guide
Foam Inserts For Protective Cases: Types, Layers And Selection
Drone & Ground Station Case
Industrial Measurement Case
KX-88015 is a PP 8 Series case, categorised under Communication Equipment Cases / Custom Protective Cases / Defense Equipment Cases / Electronics Cases, used in Aerospace & Avionics / Defense / Electronics & Instruments / Field & Deployment, with pick-and-pluck, die-cut and CNC interiors and logo, colour, hardware, packaging and mould customisation. Related reading: Container Loading For Protective Cases / Engineering Plastics In Protective Cases / Firearm & Long Equipment Transport Case Guide.
Related products
Closest alternatives, ranked by how near the internal volume sits to KX-88015.

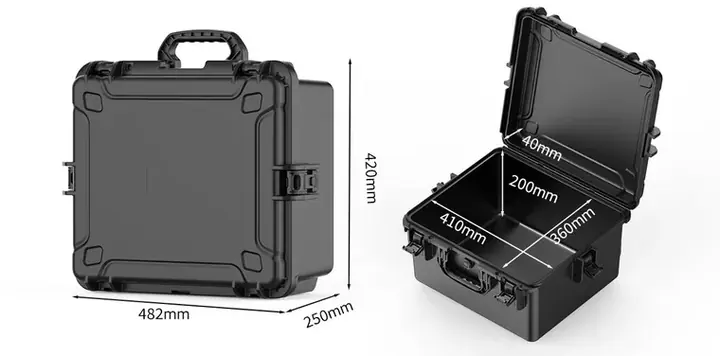

8 Series Protective Case
External 482 × 420 × 250 mm
9 Series Protective Case
External 540 × 445 × 190 mm
9 Series Protective Case
External 572 × 405 × 227 mm
8 Series Protective Case
External 488 × 398 × 245 mm
Ordering KX-88015
What are the internal dimensions of KX-88015?
725 × 350 × 140 mm internal, 800 × 408 × 153 mm external, with a lid and base depth split of 100 + 40 mm.
What material is KX-88015 made from?
PP, injection moulded with a 5 mm wall.
How much does KX-88015 weigh?
Net weight On request. Gross weight depends on the export packaging you choose and is confirmed on the quotation.
Can KX-88015 be fitted with custom foam?
Yes. Pick-and-pluck, die-cut or CNC-cut interiors are produced in-house from your drawing, a photograph of the packed kit, or a physical sample.
Is KX-88015 waterproof?
A gasket can be fitted at this 5 mm wall thickness and the sealing rim is continuous. We describe that as a manufacturer construction option, not an IP rating.
What is the minimum order for KX-88015?
One unit in the stock colour including custom foam. From 300 units for a custom colour or printed logo. A bespoke shell geometry requires a new mould and normally starts at 3,000 units per component.
Do you ship internationally?
Yes, EXW or FOB Zhongshan / Shenzhen. We do not offer retail sales, DDP terms or overseas-warehouse delivery.
